Bypass Starter Solenoid with Push Button: (Guaranteed Fix!)

Bypassing a motorcycle starter solenoid with a push button? Yes, it is possible! If you’re facing issues with your motorcycle’s starter solenoid and want to find an alternative way to start the engine, using a push button can be a viable solution.

In this article, we will explore the process of bypassing the starter solenoid by installing a push button and discuss the steps involved in getting your motorcycle up and running without relying on the traditional starting system.

So, if you’re eager to learn how to take matters into your own hands and troubleshoot any potential problems with your starter solenoid, keep reading!

A Motorcycle Starter Solenoid:

A starter solenoid is a small electromechanical device that is used to start the engine on a motorcycle. It is located near the battery and is connected to the starter motor.

When the starter button is pressed, it sends a signal to the starter solenoid, which engages the starter motor and cranks the engine.

The starter solenoid works by using a small amount of current to energize a coil. This creates a magnetic field that pulls a plunger up, which closes the contacts between the battery and the starter motor.

When the contacts close, the starter motor receives a large amount of current and starts to crank the engine.

How to Bypass Starter Relay Motorcycle?

Bypassing the starter relay on a motorcycle can be done in several ways, depending on the specific model and electrical system.

Here is a general step-by-step guide on how to bypass the starter relay:

1. First, locate the starter relay on your motorcycle. It is usually located near the battery or the starter motor.
2. Disconnect the negative terminal of the battery to ensure your safety while working on the electrical system.
3. Identify the two primary terminals on the starter relay. One will be connected to the battery, and the other will be connected to the starter motor.
4. Take a piece of insulated wire and strip the ends to expose the bare metal.
5. Connect one end of the wire to the terminal that is connected to the battery.
6. Locate the terminal that is connected to the starter motor. This terminal often has a smaller gauge wire attached to it.
7. Touch the free end of the wire you prepared in Step 4 to the terminal connected to the starter motor.
8. Reconnect the negative terminal of the battery.
9. Turn on the ignition switch and try starting the motorcycle. If the bypass was successful, the starter motor should engage and turn over the engine.

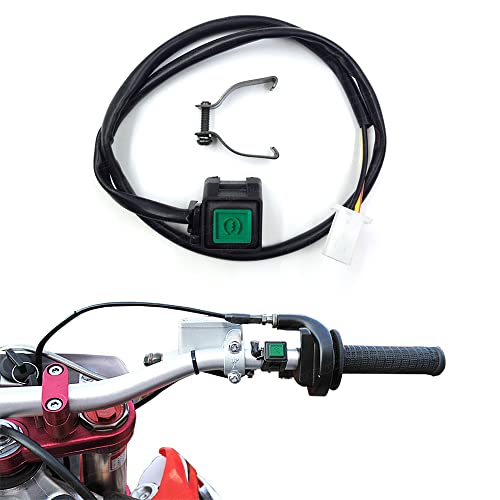

Starter Push Button Switch:

A starter push button switch is a type of switch that is used to start an engine. It is typically installed in place of the traditional ignition switch. When the button is pressed, it sends a signal to the starter solenoid, which engages the starter motor and cranks the engine.

There are two main types of starter push button switches: momentary and maintained. Momentary switches only send a signal when the button is pressed, while maintained switches continue to send a signal as long as the button is held down.

Momentary switches are typically used for starting engines, while maintained switches are more commonly used for other applications, such as activating accessories.

To install a starter push button switch, you will need to disconnect the battery and locate the starter wires. The positive starter wire will be connected to the starter solenoid, and the negative starter wire will be connected to the chassis ground.

Strip about 1/2 inch of insulation off the ends of both wires. Connect the positive starter wire to the “+” terminal on the push button switch and the negative starter wire to the “-” terminal on the switch. Secure the push button switch in place and reconnect the battery.

Once the push button switch is installed, you can test it by pressing the button and starting the engine. If the engine does not start, check the connections between the push button switch and the starter wires.

Why Would You Want to Bypass the Motorcycle Starter Solenoid?

There are several reasons why you might want to bypass the motorcycle starter solenoid and use a push button instead. Here are some of the main benefits:

1. Solenoid Failure: The starter solenoid is an essential component in starting your motorcycle’s engine. However, over time, it can wear out or fail altogether. By bypassing the solenoid, you can still start your bike even if the solenoid is no longer functioning.
2. Cost-Effective Solution: Replacing a faulty starter solenoid can be expensive, especially if you need to purchase original equipment manufacturer (OEM) parts. Bypassing the solenoid with a push button provides a more affordable alternative that allows you to get your motorcycle up and running without breaking the bank.
3. Quick and Easy Starting: Some riders prefer using a push button for starting their motorcycles because it offers quicker and easier access compared to traditional methods involving keys or switches. With just a simple press of a button, you can ignite your bike’s engine effortlessly.
4. Customization Options: Bypassing the starter solenoid gives you greater flexibility when it comes to customizing your motorcycle’s electrical system or handlebar controls. You can position the push button in a convenient location that suits your preferences or matches other modifications on your bike.
5. Emergency Situations: In emergency situations where immediate action is required, having a bypass option for starting your motorcycle becomes crucial. If there’s an issue with key ignition or other components related to starting, being able to quickly bypass them ensures that you won’t be stranded at an inconvenient time or place.

Table: Pros and Cons of Bypassing the Motorcycle Starter Solenoid

Tools and Materials Needed for Bypassing the Motorcycle Starter Solenoid

To successfully bypass the motorcycle starter solenoid using a push button, you will need to gather the following tools and materials:

1. Push Button Switch: This is the primary component required for bypassing the starter solenoid. Ensure that it is of good quality and suitable for use in motorcycles.
2. Wire Cutters/Strippers: These tools are essential for cutting and stripping wire insulation during installation.
3. Electrical Tape: Used to insulate exposed wires, preventing short circuits or electrical mishaps.
4. Screwdriver Set: A set of screwdrivers will be needed to remove any necessary panels or covers on your motorcycle’s electrical system.
5. Multimeter/Voltmeter: An invaluable tool used to measure voltage or continuity during testing and troubleshooting.

Additionally, you might also require some miscellaneous items depending on your specific motorcycle model:

• Crimping Tool: If crimp connectors are needed for making secure connections between wires, a crimping tool will come in handy.
• Heat Shrink Tubing: Provides additional protection by enclosing soldered or crimped wire connections with heat-shrinkable material that shrinks when heated.
• Wire Connectors/Terminals: These connectors enable secure attachment of wires without soldering.

Remember: Safety should always be a top priority when working with electrical components! Make sure to disconnect your motorcycle’s battery before attempting any modifications or repairs.

Bypass Starter Solenoid with Push Button: (A Step-By-Step Guide!)

To bypass the motorcycle starter solenoid using a push button, you’ll need some basic tools and follow these steps:

Gather the necessary materials: Before starting, make sure you have the following items ready:

• Push button switch
• Wire cutters/strippers
• Electrical tape or heat shrink tubing
• Screwdriver or wrench (depending on your motorcycle’s model)

1. Disconnect the battery: For safety purposes, disconnect the negative terminal of your motorcycle’s battery before proceeding.
2. Locate and identify components: Find where the starter solenoid is located in your bike’s electrical system. It is usually attached near the battery or close to the starter motor.
3. Remove protective covers: If there are any protective covers over the wiring connections, carefully remove them using a screwdriver or wrench.
4. Identify wires connected to solenoid: Take note of which wires are connected to your starter solenoid terminals. There should be two thick cables coming from the battery and one thin wire leading to either an ignition switch or another component like a clutch lever sensor.
5. Disconnect wires from solenoid: Using wire cutters/strippers, gently detach all wires connected to their respective terminals on the solenoid by removing screws/nuts holding them in place.
6. Install push button switch: Connect one end of a new wire to each of these terminals using appropriate connectors (soldering/shrink tubing) for secure connections.
7. Route new wire(s): Route both newly installed wires towards an easily accessible location such as handlebars.
8. Connect push button switch: Attach one end of each new wire securely onto opposite poles/terminals of your chosen push-button switch according to the manufacturer’s instructions.
9. Secure and insulate connections: Use electrical tape or heat shrink tubing to cover exposed wire connections, ensuring they are well-insulated and protected from moisture or potential short-circuits.
10. Reconnect battery: Reattach the negative terminal of your motorcycle’s battery.
11. Test the bypass: With everything properly connected, press the newly installed push button switch to engage the starter motor and start your motorcycle.

Safety Precautions When Bypassing the Motorcycle Starter Solenoid

When bypassing the motorcycle starter solenoid with a push button, it is important to take certain safety precautions to ensure your own well-being and prevent any potential accidents. Here are some guidelines to follow:

Disconnect the Battery: Before attempting any work on your motorcycle’s electrical system, always disconnect the battery first. This will help prevent accidental short circuits or electrical shocks.

Wear Protective Gear: It is crucial to wear appropriate protective gear such as gloves and safety goggles when working on your motorcycle’s wiring or electrical components.

Ensure Proper Wiring Connections: Double-check all wiring connections before starting the engine after bypassing the starter solenoid. Loose or incorrect connections can cause sparks, fires, or damage to other components of your motorcycle.

Use Quality Materials: Always use high-quality wires, connectors, switches, and fuses when bypassing the starter solenoid with a push button.

Follow Manufacturer Guidelines: Refer to your motorcycle’s user manual or consult with an experienced mechanic who is familiar with your specific make and model for guidance on proper wiring procedures.

Exercise Caution With Hot Components: Some parts of the motorcycle’s electrical system may become hot during operation due to current flow or proximity to engine heat sources like exhaust pipes.

Regularly Inspect Your Modifications: After installing a bypass switch for your starter solenoid, periodically inspect all connections for signs of wear, corrosion, loose fittings, or damage caused by vibration over time.

Watch video: Bypass Starter Solenoid with Push Button:

How to Hook up A Push Button Starter Switch?

To hook up a push button starter switch, disconnect the battery first. Then, locate the starter wires and strip about 1/2 inch of insulation off the ends.

Connect the positive starter wire to the “+” terminal on the push button starter switch and the negative starter wire to the “-” terminal on the switch.

Secure the push button starter switch in place and reconnect the battery. Finally, test the push button starter switch by pressing the button and starting the engine.

Conclusion: Bypass Starter Solenoid with Push Button:

Bypassing the motorcycle starter solenoid with a push button can be a convenient and practical solution for riders.

By eliminating the need to engage the solenoid through traditional means, such as using the ignition switch or kickstarting, riders can save time and effort when starting their motorcycles.

However, it is important to note that bypassing the starter solenoid should only be done by experienced individuals who understand the electrical system of their motorcycles.

Incorrect wiring or improper installation may lead to damage to your bike’s electrical components or even pose a safety hazard.

FAQs
